P1.86 LED Poster Display

category：

keywords：

Product advantages

Lightweight and Ultra-Slim Design

Compared to other similar products, Our LED poster display features a slimmer structural frame with a cabinet size of 1920mm x 640mm and a lighter weight of just 35kg, making it extremely convenient. The stand includes wheels, allowing even one person to easily move it. Its slim architecture and thinner bezels also ensure smaller gaps, enhancing the overall visual experience.

Multi-Image Display on a Single Screen

A single LED poster display can simultaneously display multiple images, offering a dynamic and varied visual experience. This method improves your information delivery, enabling a variety of content displays on one screen.

Wide Viewing Angle

Our LED poster display offers a viewing angle of 140°, accommodating a wider range of viewing angles and distances, presenting high-quality visual content without any blind spots, and delivering a perfect display effect for the audience.

Dynamic Visual Displaying with Mobile Design

LED poster display includes a universal wheel that boosts mobility for easy and smooth transportation. Ideal for enhancing interactive displays at events like weddings and parties, this screen can be moved during opening acts or surprise segments. The combination of universal wheels and a multi-screen system transforms it into a versatile, movable display, adding creativity and interaction to any event.

Product Parameters

Pixel Pitch：

P1.86

LED Lamp Type：

SMD/GOB

Cabinet Weight：

35kg

Refresh Rate：

≥3840HZ

Gray Scale (Bits)：

16Bits

Resolution（dot）：

355008 dots

IP Grade：

IP43

Brightness (cd)：

≥800cd-1000cd/m²

Input Voltage (V)：

AC110-220V±10%, 50Hz

Life Span：

100000Hrs

Maintenance：

Front

Frame Material：

Dia-casting Aluminum

Product Application

Slim and portable cabinet design
Super-fast 5-minute installation
Ultra-high-definition image quality
Supports multiple installation methods
Convenient synchronization control

Stunning LED Display Effects

A pixel pitch of 1.86mm produces clearer high-definition video images. Bright color saturation, higher contrast, and standard vivid color presentation offer a lifelike visual feast.

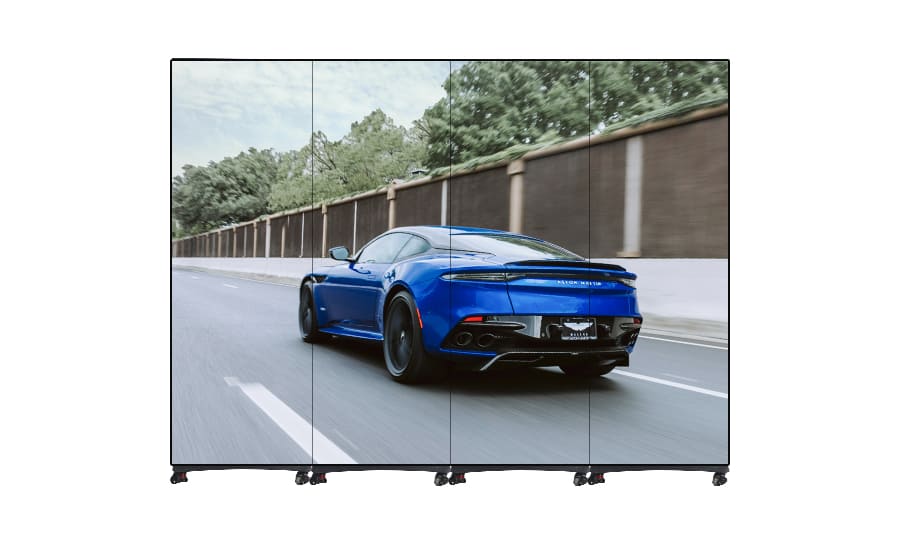

Smooth, No-lag Display

With a refresh rate greater than 3840HZ, it presents a smooth, no-lag display.

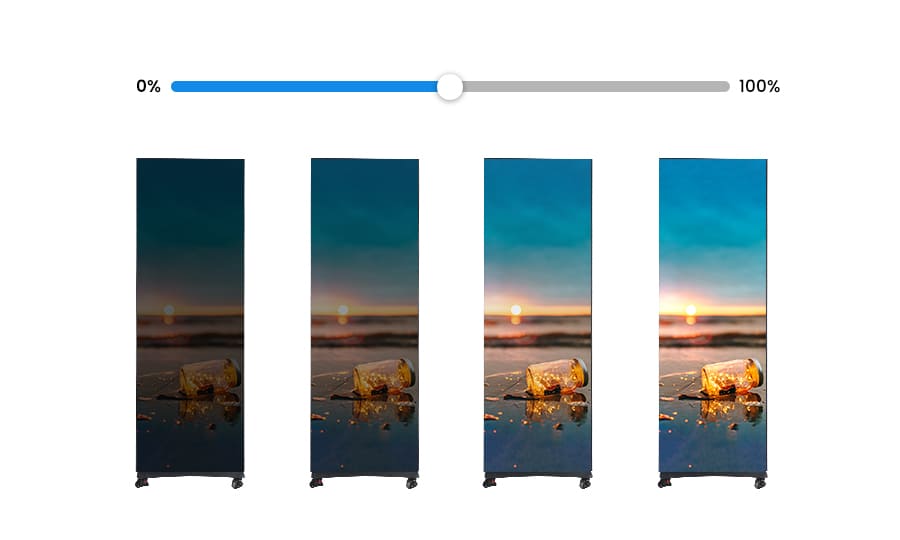

Adjustable Brightness

Advanced brightness adjustment methods support 100 levels of software adjustment, achieving better brightness balance and convenient use in various indoor lighting conditions.

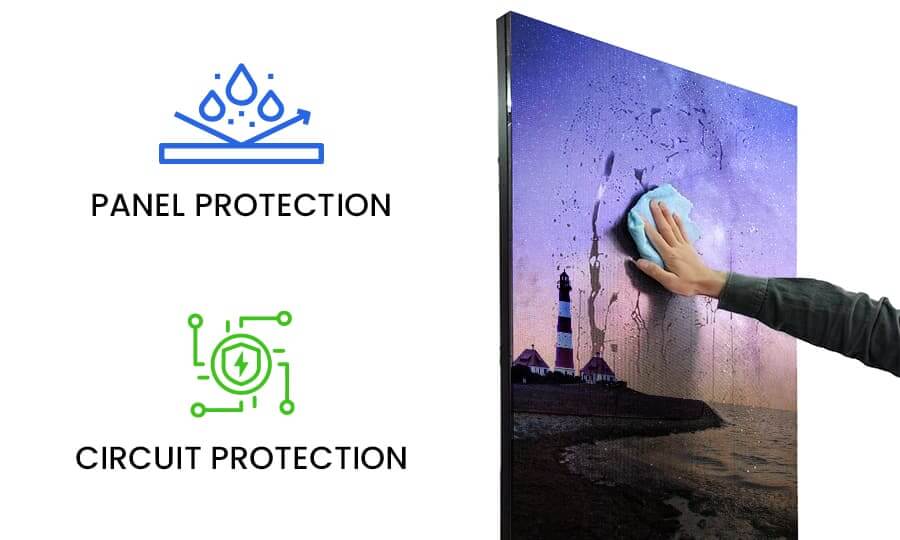

Advanced Protection Technology

The LED poster screen features moisture resistance, dust resistance, corrosion resistance, and anti-static properties, as well as overcurrent, short-circuit, overvoltage, and undervoltage protection to ensure long-term stable operation.

Specification

Category	Specification	Details
Single Cabinet	Pixel Pitch	1.86mm
	Density	288,906 dots/m²
	LED Composition	1R1G1B
	Color	Pure Red, Pure Green, Pure Blue
	Panel Size	320mm x 160mm
	Cabinet Size	1920mm x 640mm
	Cabinet Weight	35KG/SQM
	Brightness	≥800-1000cd/m²
Whole Screen	Best Viewing Distance	3m to 10m
	Best Viewing Angle	Horizontal 140°, Vertical 140°
	Environment Temperature	Storage: -40℃ to +85℃, Operation: -20℃ to +60℃
	Humidity	10% to 95%
	Screen Depth	12cm
Power	Working Voltage	AC220V±10％, 50Hz
	Average Power Consumption	350W/m²
	Maximum Power Consumption	≤800W/m²
Control System	Control Computer	Lenovo or equivalent
	Operating System	WIN 98/ 2000/ NT/XP
	Control Method	Synchronization
	Display Card	DVI display card
